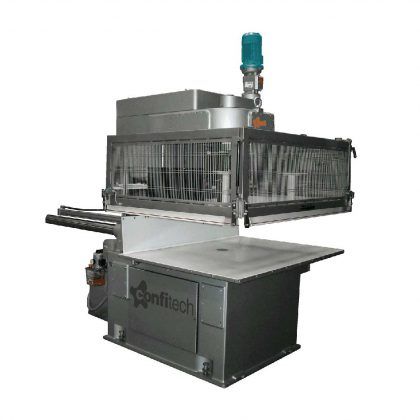

Originally patented by our company in 1970s, the Horizontal Pulling Machines TZ.40 and TZ.60 are designed to safely pull hard or soft candy batches, up to 60 kg, inside a totally enclosed pulling area.
Mainly used for chewy candy, they are also employed to achieve glossy finish, white and silky aspect and a lighter weight on premium quality hard candy or lollipops.
The pulling operation is carried out by two vertical spinning arms, covered with non-sticking sleeves, which are lowered into the batch, sitting on a water cooled table, when pulling cycle starts.
Variable pulling speed and long stretch considerably reduce the pulling time normally required on other conventional pullers, while a self cleaning procedure, automatically executed at the end of each cycle, prevents sticking of the mass on pulling arms.
The TZ.60 model also features automatic unloading of batches and it is usually integrated in fully automatic processing lines.
Safe pulling process.
Both manual and automatic load/unload.
Variable pulling speed.
Capacity up to 60 Kg/batch (130 lbs/batch).
TZ40
TZ60
